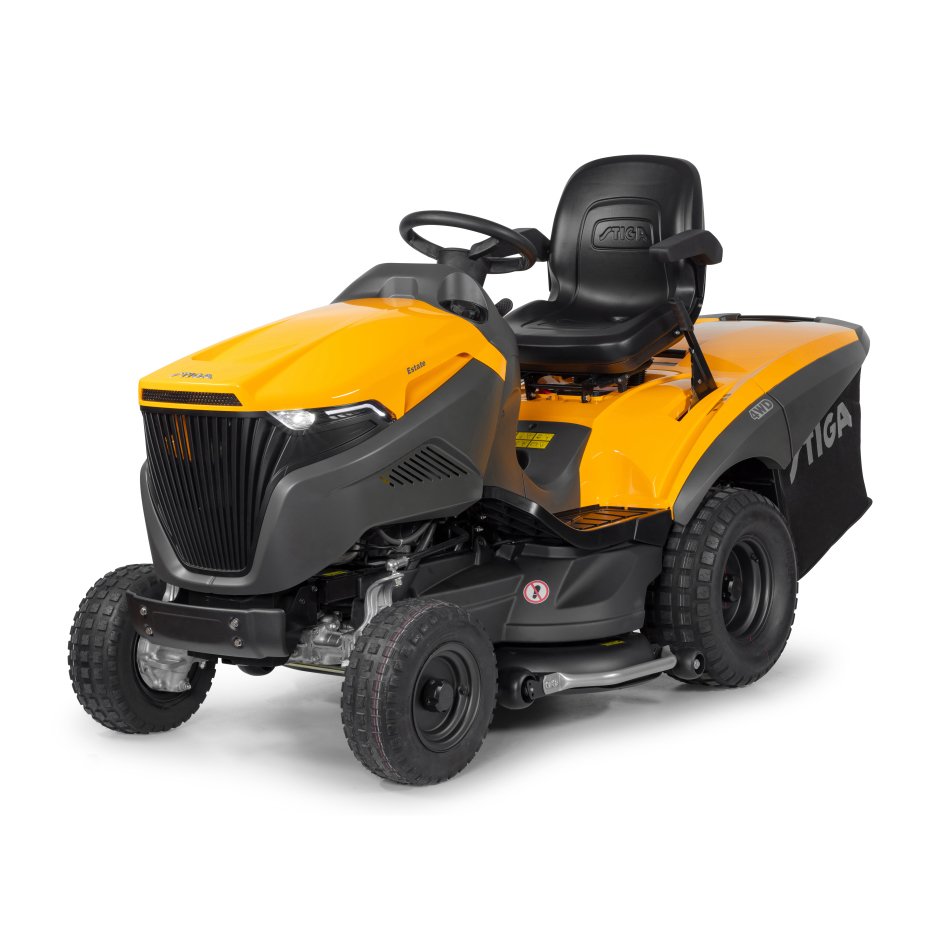

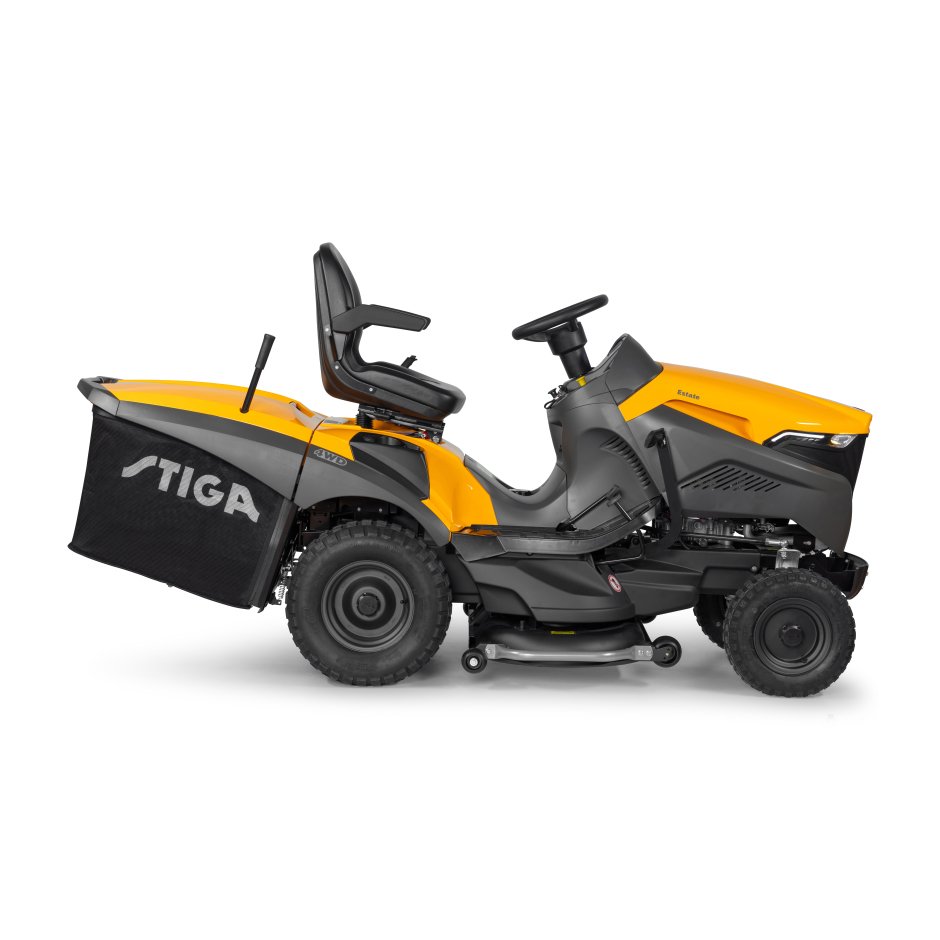

The STIGA Estate 9102 WX is a cutting-edge lawn tractor with a four-wheel-drive transmission and a substantial 102cm cutter-deck that combine to make it ideal for large areas containing inclines, rough grass and other challenging terrain.
Its 688 cc Honda GXV 690 twin-cylinder engine guarantees you’ll enjoy high performance with less tiring vibration and a reduction in fuel-consumption and polluting exhaust emissions.
The Estate 9102 WX has three cutting-modes (collecting; mulching; rear-discharge) and offers nine pre-set cutting-heights, so it can be configured to achieve great results on a wide range of grass conditions. It benefits from a smart 5.5″ widescreen display that provides useful information on all the important operating parameters; and it combines a raised steering-wheel with an armrest-equipped seat to ensure excellent driver-comfort.
Thanks to its hydrostatic drive, which provides infinitely variable ground-speed control via a foot pedal, the Estate 9102 WX is a pleasure to drive and excels in terms of manoeuvrability. Electromagnetic blade-engagement makes activating the PTO an effortless operation; while twin timed blades produce a neat finish with no blade of grass missed.
The quality features continue – there’s a bonnet that improves air-intake and optimizes power-output and a robust bumper that will protect the front of the mower in the event of accidental impact.
| Engine | Honda GXV 690 | Engine Displacement | 688 cc / twin cylinder |
|---|---|---|---|
| Engine Net Power | 12,65 kW @ 2500 rpm | Cutting Methods | Collecting Or Mulching |
| Fuel Tank Capacity | 10,0 l | Cutting Width | 102 cm |
| Cutting Height | 9 positions from 25 to 100 mm | Blade Engagement | Electromagnetic |
| Grass Bag Capacity | 360 l | Discharge Type | Rear discharge |
| Deck Wash Port | Yes | Anti-Scalp Wheels | Yes |
| Transmission | Hydro 4WD | Wheel Size (Front/Rear) | 16″ X 20″ |
| Dashboard | smart widescreen display | Head Light(s) | Yes |
| Steering Wheel | STIGA premium with soft grip | Seat | STIGA comfort plus with armrests |
| Mulch System | Optional | Hitch | Optional |
| Battery Charger | Optional |
