65mm Industrial Magnetic Drill (110V)


Incl. VAT

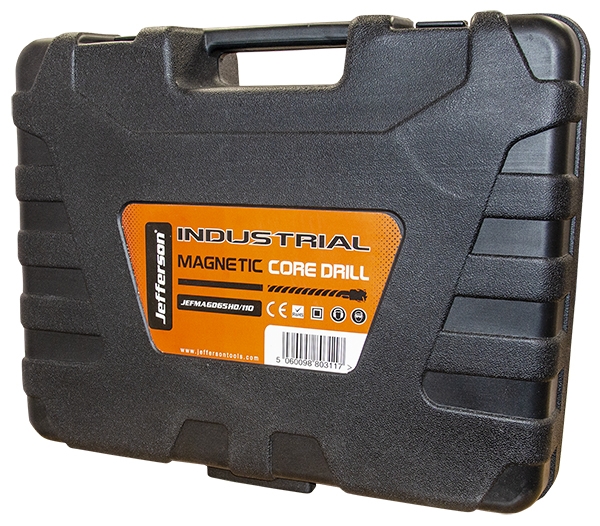

Includes blow moulded case

This magnetic drill is designed for drilling holes in steel fabrication work
It is an ideal portable drilling solution equally suited for use in building sites or the workshop environment and can be used to cut in horizontal, vertical and overhead positions. The magnetic drill uses an annular hole cutter (sometimes called a slugger bit) to cut clean and accurate holes without pre-drilling or step drilling
After cutting through the steel the cutter produces a “slug” (a cylindrical lump of steel) that falls from the centre of the cut
2 speed mechanical gearbox
Supplied with metal case

  • Maximum Cutting Capacity: 65mm
  • Maximum Tapping Diameter: M20mm
  • Maximum Twist Drill Diameter: 25mm
  • Maximum Cutting Depth: 50mm
  • Input Voltage: 110V
  • Magnetic Adhesion: 15,800N
  • Motor Power / Speed: 1890W
  • No Load Speed: 100-180/500rpm
  • Dimensions: 390 x 110 x 390mm
  • Weight: 28kg
